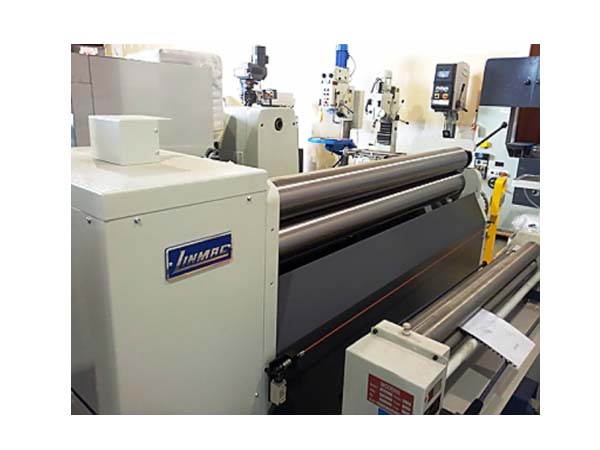

MODERN/LINMAC RH-0806 Hydraulic Double Pinch Plate Bending Roll

call for prices

The brand-name MODERN is synonymous to quality and performance. For over 20 years, MODERN machines have been sold, tried and tested in North America. We call that SUCCESS!

FEATURES:

  • Hydraulic circuits which are protected against overload are fully enclosed to provide a low noise, leak proof flow system.
  • All 3 rolls rotation are driven independently & hydraulically
  • Hydraulic pinch adjustment for each lower roll
  • Each lower roll is equipped with an easy read LED indicator to show it’s reference position for operator
  • Hydraulic pinch adjustment can be easily adjusted from the led indicator reading
Category: Tags:

Description

  • Portable controller around the machine for rolls forward/reverse/pinch adjustment conveniently
  • All rolls are made of top grade alloy steel hardened up to HRC55°
  • Spherical roller bearings which are high quality made & sealed in to keep out dirt & dust are installed for all rolls
  • The rolls are also manufactured in a camber design to compensate any distortion of the rolls from pressure during the bending process. This design can avoid having a finished cylinder with a convex or concave shape.
SPECIFICATIONS:
  • Rolling Length: 100”/2550mm
  • Prebend – Mild Steel: 4mm / 3/16
  • Roll Diameter: Ø 9”/230mm Ø
  • Motor: 5 HP/208/3PH
  • Roll Speed: 4.5 m/min.
  • Packing Size: 141” x 45” x 53”
  • Packing Weight: 13,200 lbs
