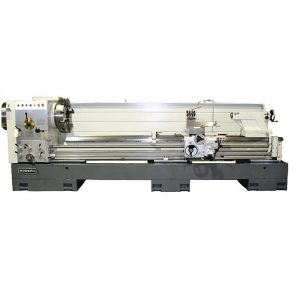

MODERN LA 560 x 2000 Precision Lathe

call for prices

The brand-name MODERN is synonymous to quality and performance. For over 20 years, MODERN machines have been sold, tried and tested in North America. We call that SUCCESS!

SPECIFICATIONS:

  • Bed Width: – 15-3/4″
  • Total Travel of Top Slide: – 7-1/2″
  • Swing Over Bed: – 22″
  • Swing Over Cross Slide: – 13″
  • Swing in Gap: – 30-7/8″
  • Gap Width in Front of Face Plate: – 10-5/8″
  • Height of Centers from Leg Bottom: – 42″
  • Distance Between Centers: – 80″
  • Number of Spindle Speeds: – 12
Category: Tag:

Description

  • Spindle Bore: – 4-1/16″
  • Type of Spindle Nose: – D1-11
  • Taper of Spindle Bore & Center: – MT No. 7 x No. 5
  • Range of Spindle Speeds: – 8 – 800 RPM
  • Range of Inch Threads: – 4 PTI: 2-72, 2 PTI:1-36
  • Range of Metric Threads: – 6mm: 0.2 ~ 14
  • Number of Feeds: – 36
  • Range of Longitudinal Feeds: – Inch: 0.035~0.98 (0.0014″~0.039″)
  • Range of Cross Feeds: – ½ of Longitudinal Feeds
  • Tailstock Quill Diameter: – 2-15/16″
  • Total Travel of Tailstock Quill: – 7″ – MT#5
  • Taper in Tailstock Quill: – MT#5
  • Spindle Drive Motor: – 15HP/208V / 3PH
  • Coolant Pump: – 1/8
STANDARD EQUIPMENT:
  • Center Sleeve
  • Dead Center
  • Levelling Screws
  • Service Kit
  • Steady Rest
  • Drive Plate
  • Coolant
  • Follow Rest
  • Steady Rest
  • Halogen Lamp
  • Taper Attachment
  • Full Length Splash Guard
  • 15” 3 Jaw Chuck
  • 16” 4 Jaw Chuck
  • Fagor 2 Axis Digital Readout
OPTIONAL EQUIPMENT:
  • Larger Steady Rest
  • 2 Axis Fagor DRO Installed
