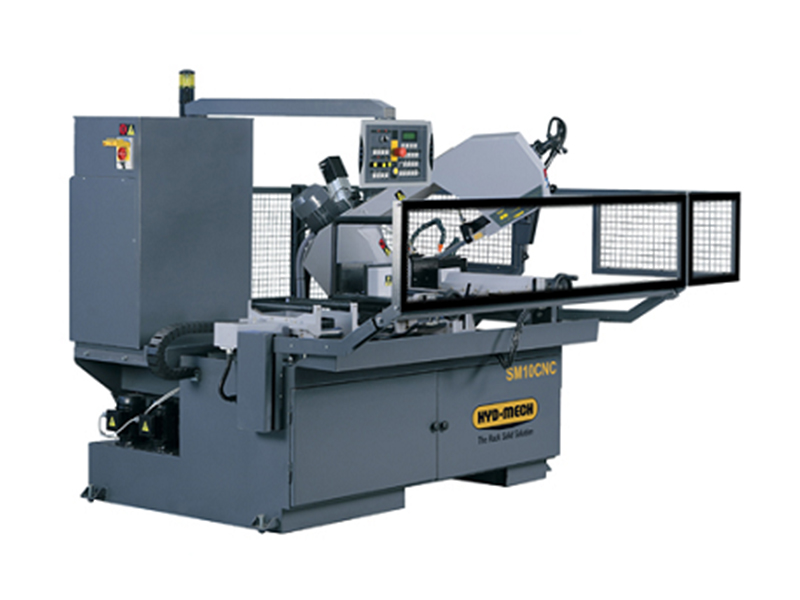

HYD-MECH SM10CNC Single Miter Band Saw

Description

FEATURES:

• Heavy-duty hydraulic material clamping vises
• Operates in manual, semi-automatic and fully automatic mode with 1000 job storage
• Controller displays blade speed, number of cuts, blade thickness, length of cuts, cutting time, amp meter, blade tension, diagnostics
  and other safety messages that can be viewed in several languages
• Material indexing up to 23.5” in a single stroke driven by a stepper motor and ball screw assembly
• Hydraulic positive down feed sawing head
• Robust steel base manufactured from heavy gauge plate and electro welded components
• Heavy-duty, cast iron head and wheels supported by a rigid pivot point reduces vibrations while cutting
• Adjustable guide arm for rigid support of saw blade during cutting process
• Carbide guides for longer blade life
• Replaceable blade brush driven off band wheel
• Manual blade tension with tension meter and blade breakage switch
• Equipped with a safety door interlock
• Variable band speed, controlled by an AC Inverter drive system

SPECIFICATIONS:

• Capacity at 90°: Rectangular 7 3/4″ x 11″
• Square 9″
• Round 10″
• Blade Size: 1″
• HP: 2.5 HP
• Operation: Automatic
• Mitering?: 60° right
